Assembly notes, Vostok Caliber 2209:

Disassembly is the reverse.

This is not intended to be a course in watchmaking or repair. It's just that it can be annoying to find out that a part is leftover at the end, like that pesky stem release pin. So, I make notes for myself.

Sorry, we do not offer watchmaking or watch repair services to the public.

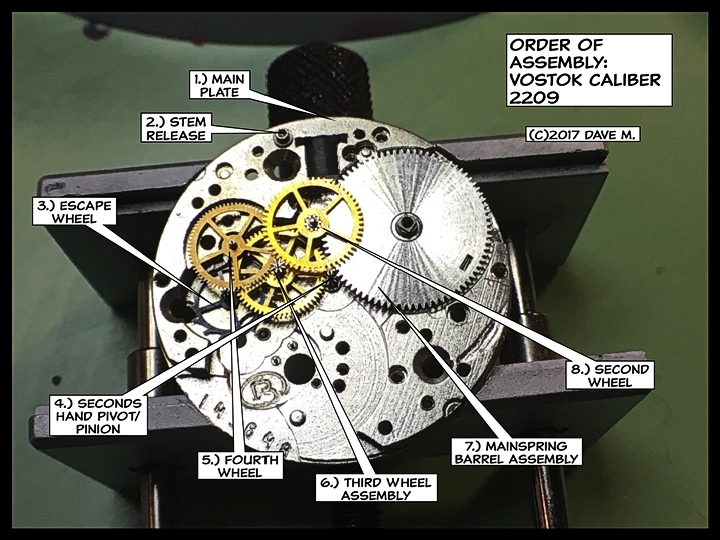

2209 assembly 1

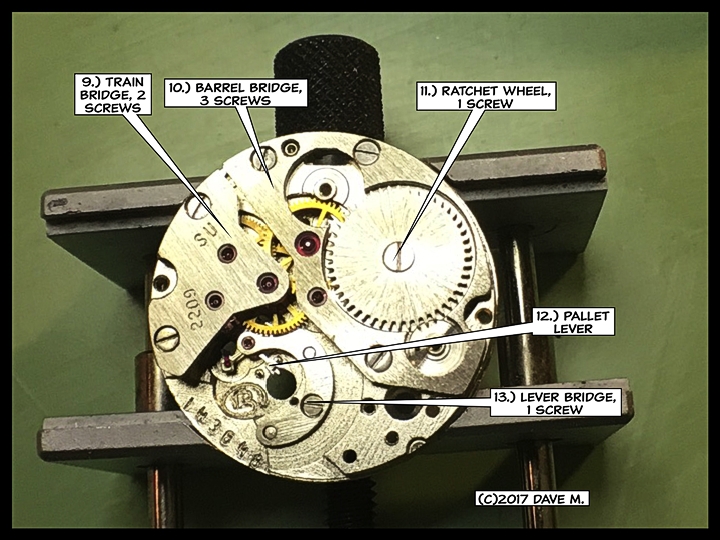

2209 assembly 2

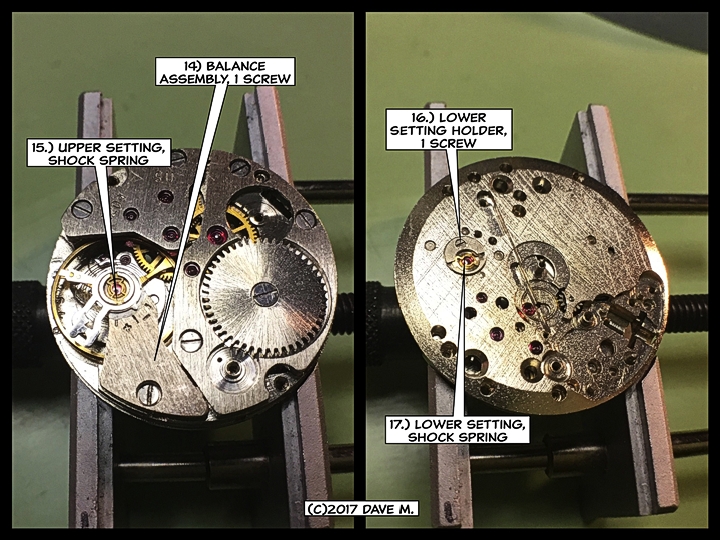

2209 assembly 3

2209 assembly 4

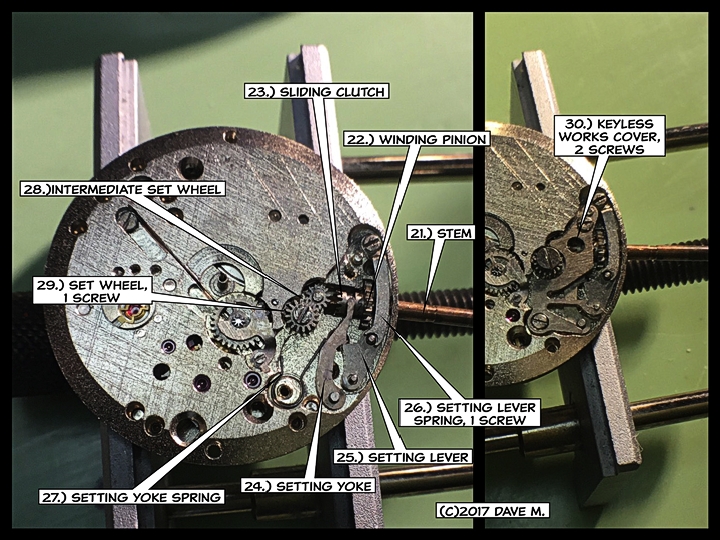

2209 assembly 5

2209 assembly 6
